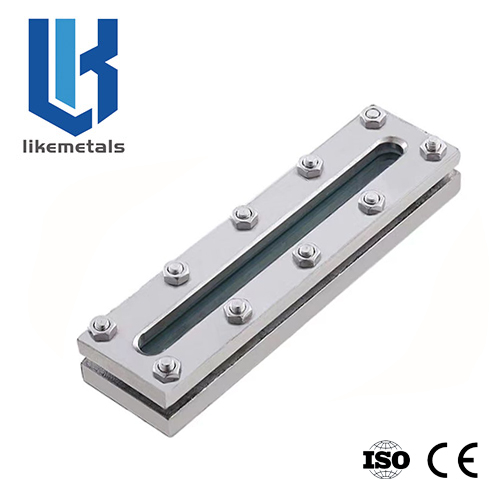

Flanged sight glass is comprised of stainless steel frame and glass.Through it,operator can observe the flowing of the liquid substance clearly and precisely in the fields of food cosmetics,pharmaceutical and fine chemicals.
Design And Characteristics
Gasket:Silicone,EPDM,FPM in accordancewith FDA177.2600.
Max Temperature: -10℃ to 120℃
Technical Details
| SIZE |
L |
H |
Top Flange |
Bottom Flange |
Visible Width |
| 200*80 |
200 |
80 |
14 |
20 |
20 |
| 250*80 |
250 |
80 |
14 |
20 |
20 |
| 300*80 |
300 |
80 |
14 |
20 |
20 |
| 350*80 |
350 |
80 |
14 |
20 |
20 |
| 400*80 |
400 |
80 |
14 |
20 |
20 |
| 500*80 |
500 |
80 |
14 |
20 |
20 |
| 600*80 |
600 |
80 |
14 |
20 |
20 |
| 700*80 |
700 |
80 |
14 |
20 |
20 |
| 800*80 |
800 |
80 |
14 |
20 |
20 |
*Gasket Material Option：Silicon, EPDM,FPM per FDA
Our Service
Samples
Buyer bear the air fee, but this fee will be reduced from order directly
Delivery
Never delay delivery time
Quality
Ensure material pure
After Sales
Please contact our After-sales service department in time within 30days after you received the cargo.
Tel:+86 15988775005,Working Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process
Please provide the copy of Sales Contract and describe the problems appeared.
Slight problem
Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem
1. We will dispatch our Quality and Problems Appraisers to make a confirmation
2. Have a negotiation of the compensation and sign agreements
3. Our After-Sales Department will perform the duties as the agreements
Replacement
Free replacement if there is any quality problem
